ElectriKeys Electric Piano VSTi




Overview

ElectriKeys is an Electric Piano emulation based on vintage Fender Rhodes MK1™, Hohner Clavinet D6™, Wurlitzer™ and Yamaha CP-70 e-pianosAvailable for Windows and Linux based VST/FST hosts.



Rhodes Mk1 - Quick MP3 sampleStream: m3u playlist

Wurlitzer - Quick MP3 sampleStream: m3u playlist

Hohner Clavinet D6 - Quick MP3 sampleStream: m3u playlist

Yamaha_CP70_Mellow - Quick MP3 sampleStream: m3u playlist

Yamaha CP70 Normal - Quick MP3 sampleStream: m3u playlist

Yamaha CP70 Bright - Quick MP3 sampleStream: m3u playlist

A Walk In The Black Forest (Eine Schwarzwaldfahrt) Horst Jankowski (Yamaha CP70 Normal)A Walk In The Black Forest (Horst Jankowski) ElectriKeys Yamaha CP70 Normal, Syntheway Strings, Aeternus Brass VST instruments (PC Windows, Mac OS X) "Eine Schwarzwaldfahrt" Originally by German pianist Horst Jankowski from The Genius Of Jankowski! album (1965)

Don't Let The World Pass You By (Jean-Luc Ponty) Hohner Clavinet & Fender Rhodes Click On Icon To Stream m3u playlist: Don't Let The World Pass You By (Jean-Luc Ponty) Syntheway Strings, Zephyrus, ElectriKeys Hohner Clavinet D6 & Fender Rhodes, Magnus Choir VST Plugins Software (Windows, Apple Mac OS X)

Don't Push Your Foot on the Heartbrake (Fender Rhodes & Yamaha CP70)Click On Icon To Stream m3u playlist

Funky Jazz Fusion (Fender Rhodes & Hohner Clavinet D6)Click On Icon To Stream m3u playlist: Funky Jazz Fusion - ElectriKeys (Fender Rhodes and Hohner Clavinet D6), Master Hammond B3 Organ, Magnus Choir, Syntheway Strings VST Plugins

Watermelon Man (Herbie Hancock cover) Rhodes MkIClick On Icon To Stream m3u playlist - Watermelon Man (Herbie Hancock cover) Syntheway Mallet Vibraphone (aka Vibraharp or Vibes) Percussion Kit and Electrikeys Fender Rhodes Electric Piano

Eruption (Tarkus, Emerson Lake & Palmer cover)Click On Icon To Stream m3u playlist -> Eruption (Tarkus, Emerson Lake and Palmer Cover/Demo) Master Hammond B3, ElectriKeys ePiano, Aeternus Brass VSTi

Hohner Clavinet D6Click On Icon To Stream m3u playlist -Hohner Clavinet D6 demo: Syntheway ElectriKeys Vintage Virtual Electric Pianos VST Plugin Software



More MP3 demosStream: m3u playlist - Click here to stream and download more MP3 demo samples




Features

    • Sound is generated via a hybrid method that combines synthesis and sampling techniques, to create the most realistic sounds of these vintage electric pianos.

    • EP Selector. One instrument offering the sound of four legendary e-pianos:

      • Fender Rhodes Electric Piano (Stage Piano Mark I)

      • Hohner Clavinet D6™

      • Wurlitzer Electric Piano

      • Yamaha CP-70 Electric Grand Piano (Brilliance: Mellow, Normal and Bright)

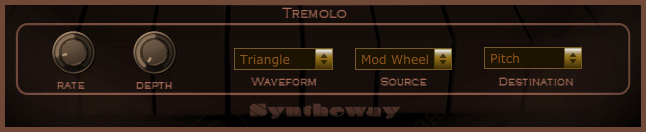

    • Tremolo Section: Recreates the classic effect (which was called vibrato on the real Rhodes front panel). Contains a LFO (Low Frequency Oscillator) with modulation depth, frequency and offset. The panning slider controls the output effect distribution between left and right speaker and to help create a broad spectrum of stereo tremolo effects.

    • 5-Band Parametric Equalizer: EQ composed of five parametric filters with Frequency, Bandwidth and Gain knobs. Equalization allows you to lower or raise the volume of specific frequency ranges for bass and treble manipulation. Also contains global gain wheel to adjust the overall volume (Turn the wheel to right to boost a band, or to left to decrease its level).

    • Decay & Release Time:  Decay sets the note decay while the key is pressed. Release sets the release (fade out) time after the key is released, offering unique tone to each player.

    • 32 presets for Tremolo effects and Parametric EQ ready to play. Creating new sounds is as simple as combining these presets in different ways and tweaking any associated parameters from there as desired.

    • Signal's Harmonic Spectrum (Freq. analyzer)

    • FULL MIDI Automation: Complete MIDI Continuous Controller. Every parameter can be controlled via MIDI or host automation.

Windows Operating System: Native dll file for Windows® XP, Windows® Vista, Windows® 7, Windows® 8 / x86 (32 bit). For x64 (64 bit) test the demo plugin with your host internal bit bridge as in Cubase (VST Bridge), FL Studio (Bridged mode), Cakewalk SONAR X1, X2 (BitBridge) or via external jBridge application for Ableton Live, PreSonus Studio One, etc. - Apple Mac OS X: See options available for Macintosh users in Universal Binary and Sample Libraries for Mac (Audio Unit, VST for Mac, NI Kontakt NKI Files, Apple Logic EXS24 MkII Sample Library) Linux Operating System: with the following requirements (Special Thanks to Paul Davis).





" E L E C T R I K E Y S " is based on 4 Vintage Electric Pianos

1) Fender Rhodes Mark I (1969-1975)
The Fender Rhod
The Rhodes name and logo are trademarks of Joseph A. Brandstetter. The Fender name and logo are trademarks of Fender Musical Instruments.es product line evolved quickly as the 1970's began. The 73-key Electric Piano was renamed the Fender Rhodes Suitcase Piano in 1969, featuring a black harp cover and a stereo 80W amp, and by 1970 the Fender Rhodes Mark I Stage Piano was available. The Stage Piano was the piano top from the Suitcase model, modified for use with an external guitar or bass amplifier. The Stage model featured detachable legs (parts from a Fender pedal steel guitar), a sustain pedal and pushrod (part of a Rogers hi-hat stand), and a simplified front panel with only volume and bass EQ controls. Internally, the Stage Piano was nearly identical to the Suitcase model. Over the last few decades, the electric piano has played a central role in music of all types, from jazz/fusion and funk, to rock and dance. The Rhodes was  used much in jazz-fusion throughout the 1970s. Chick Corea's album Light as a Feather and Miles Davis's In a Silent Way featured the Rhodes throughout the whole album. Joe Zawinul of Weather Report, Jan Hammer of the Mahavishnu Orchestra and Herbie Hancock also used the Rhodes. The Rhodes name and logo are trademarks of Joseph A. Brandstetter. The Fender name and logo are trademarks of Fender Musical Instruments.

Classic Rhodes™  Effects
The piano's clean tone is what you hear on many essential Fender Rhodes recordings, but definitely not all of them. The Rhodes sounds even better with the right amp and effects. The Suitcase Vibrato was the original Rhodes effect, built into all versions of the Suitcase piano (as well as Stage models with the Super Satellite & Janus I systems). The idea behind the Vibrato was to simulate a rotating speaker, although the actual sound was quite different. The first version of the Vibrato was in mono, a tremolo effect that varied the amplitude of the piano's output in a square-wave pattern. When the Suitcase amps went stereo in 1969, this pattern was translated into a panning effect. Front-panel controls were provided for Speed and Intensity.


2) Hohner Clavinet D6™ (Image Copyright by Electronic Edge Vintage Keys )

Musician and inventor, Ernst Zacharias, designed the first of these, the Cembalet, in the 1950’s. This was intended to be a portable, amplifiable version of the Cembalo, or Harpsichord. This worked by plucking the end of a flat reed with the key, which was then picked up and amplified in much the same way as an electric guitar. A little later came the Pianet. Both the "CH" and "N" models once again used flat reeds, but employed a very different plucking/striking action. When a key was depressed it engaged a "sticky pad" with foam backing which actually stuck to the reed. When the key was released, the pad came unstuck causing the reed to vibrate which was then amplified. The Pianet model "T" came much later and utilized the suction of a soft rubber pad onto the reed. This was somewhat superior to the "N" and "CH" models, but still had several drawbacks. Although made very popular by bands such as the Zombies and Small Faces, there wasn’t much dynamism available from the keyboard. As all the reeds were damped upon release, this negated the possibility of obtaining sustain via a foot pedal.
The D6 was later superseded by the model E6 and the Clavinet/Pianet Duo. These were basically the same, but more roadworthy and better protected against proximity hums and generally quieter than previous models. However, these models came just a bit too late on the scene in the age of electronics to be as successful as they deserved to be.


3) Wurlitzer™  Electric Piano

Inventor Benjamin Miessner had designed an amplified conventional upright piano in the 1930s, and Wurlitzer used his electrostatic pickup design, but replaced the strings with struck steel reeds. The instrument entered production in 1955 as the EP-112 and continued to be produced in various forms until about 1982 when production of the EP-200A ceased.

The Wurlitzer piano is usually a 64-note instrument whose keyboard range is from A an octave above the lowest note of a standard 88-note piano to the C an octave below the top note of an 88-note piano. Tone production in all models comprises a single steel reed for each key, activated by a miniature version of a conventional grand piano action and forming part of an electrostatic pickup system using a DC voltage of 170v. A mechanical sustain pedal similar to that of a conventional piano is fitted

Compared with its erstwhile rival, the (Fender) Rhodes electric piano, the Wurlitzer has a brighter, more hollow sound. When played gently the sound can be quite sweet and vibraphone-like, becoming more aggressive with harder playing. In a pop or rock band setting with guitar(s), bass and drums the Wurlitzer has a distinctive and clear sound where a Rhodes would tend to blend in. However it has also been used successfully in MOR ballads and even country music.


4) Yamaha CP70 Electric Grand

The quest for a portable piano has been around since the invention of the Fender Rhodes and the Wurlitzer. Of course, neither of these actually sound like pianos... they have a pleasant sound that is 'piano-like' but in no way are they a substitute for the real thing.

Several companies tried all sorts of things (including some fairly horrible electronic things) but it wasn't until Yamaha released their CP70 'Electric Grand Piano' in the mid-'70s that I had something approaching a 'real' piano that could be toured around and amplified easily without any difficult mic techniques.

There were three models in the product's lifetime... the original CP70 (73-note keyboard) which was superceded by the CP70B (with balanced outputs) and the CP80 (a full 88-note keyboard version).





  • The Rhodes name and logo are trademarks of Joseph A. Brandstetter.

  • The Fender name and logo are trademarks of Fender Musical Instruments.

  • Clavinet is a registered trademark of Hohner International.

  • Wurlitzer is a registered trademark of the Baldwin Piano Co.

  • Yamaha is a registered trademark of Yamaha Corporation.

 These trademarks are not affiliated or associated with Syntheway and are mentioned only to describe the types of sounds reproduced by ElectriKeys Electric Piano.




:: MIDI Implementation Chart for ElectriKeys Electric Piano :

:= FULL MIDI Automation =: Complete MIDI Continuous Controller (Control of all parameters for use with external hardware control). The following MIDI CC messages are recognized and affect the described parameters:

MIDI CC #     -       Controller Name

CC# 01 - TREMOLO (LFO) - DEPTH (Modulation Wheel)
CC# 03 - TREMOLO (LFO) - FREQUENCY
CC# 09 - TREMOLO (LFO) - OFFSET
CC# 08 - TREMOLO (LFO) - PANNING TREMOLO EFFECT
CC# 14 - TREMOLO (LFO) - MIXER


CC# 07 - MASTER VOLUME
CC# 10 - STEREO PANNING
CC# 11 - SELECTOR E-PIANO TYPE


CC# 20 - 5-BAND PARAMETRIC EQ1 - LOW CUT
CC# 21 - 5-BAND PARAMETRIC EQ1 - LOW SLOPE
CC# 22 - 5-BAND PARAMETRIC EQ1 - LOW GAIN

CC# 23 - 5-BAND PARAMETRIC EQ2 - MID-LOW CUT
CC# 24 - 5-BAND PARAMETRIC EQ2 - MID-LOW BANDWIDTH
CC# 25 - 5-BAND PARAMETRIC EQ2 - MID-LOW GAIN

CC# 26 - 5-BAND PARAMETRIC EQ3 - MID CUT
CC# 27 - 5-BAND PARAMETRIC EQ3 - MID SLOPE
CC# 28 - 5-BAND PARAMETRIC EQ3 - MID GAIN

CC# 29 - 5-BAND PARAMETRIC EQ4 - MID-HIGH CUT
CC# 30 - 5-BAND PARAMETRIC EQ4 - MID-HIGH BANDWIDTH
CC# 31 - 5-BAND PARAMETRIC EQ4 - MID-HIGH GAIN

CC# 32 - 5-BAND PARAMETRIC EQ5 - HIGH CUT
CC# 41 - 5-BAND PARAMETRIC EQ5 - HIGH BANDWIDTH
CC# 46 - 5-BAND PARAMETRIC EQ5 - HIGH GAIN


CC# 71 - DECAY TIME
CC# 72 - RELEASE TIME



Syntheway at KVR Audio Plugin Resources

KVR Audio Plugin Resources

System Requirements

      Before you install VST Instruments & Effects, please make sure your computer fulfills the following requirements:

  • Windows Operating System: Native dll file for Windows® XP, Windows® Vista, Windows® 7, Windows® 8 / x86 (32 bit). For x64 (64 bit) test the demo plugin with your host internal bit bridge as in Cubase (VST Bridge), FL Studio (Bridged mode), Cakewalk SONAR X1, X2 (BitBridge) or via external jBridge application for Ableton Live, PreSonus Studio One, etc.

  • Apple Mac OS X: See options available for Macintosh users in Universal Binary and more.

  • Linux Operating System: with the following requirements (Special Thanks to Paul Davis) or in MusE from v2.1 with Native VST support.

  • 500 MHz Processor (Pentium®, Celeron® AMD® or equivalent) minimum.

  • RAM: 128 MB or higher recommended.

  • VST compatible host / Digital Audio Workstation DAW/ MIDI Sequencer: This VST software can be "plugged in" to any host application that supports VST Technology like: Image-Line FL Studio, Steinberg Cubase, Cakewalk SONAR X1 - X2 (Producer, Studio, Essential), Ableton Live, Cockos Reaper, PreSonus Studio One, Acoustica Mixcraft, Synapse Audio Orion, Sony Acid Pro, MakeMusic Finale, Avid Sibelius, Mackie Tracktion, Audio Mulch, Steinberg Nuendo, Magix Samplitude,  Magix Music Maker, Cantabile Lite - Solo - Performer, n-Track Studio, VSTHost, SAVIHost, M-Audio Evolution Sound Studio II  Standard & Pro, PowerTracks Pro Audio, Making Waves Studio, Native Instruments KORE 2 Software-Hardware workstation and much more ...

  • An ASIO® soundcard is recommended for low latency real-time play.

  • Please test extensively the demo version of your selected product (s) in your host to make sure there are no misbehaviors before purchasing.



Installing and Uninstalling VST Plug-in

To install VST plug-in, follow these steps:

  • The files must be in a directory where the VST host is looking for VST plug-ins.

  • Unzip and extract *.rar file

  • RAR file contains *.dat & *.dll files.

  • Put both files into VST Plug-ins Folder of your host application.

Note: RAR file extension: The files are compressed with WinRar for minimum file size. RAR is a format like ZIP. It is a compressed archive. You must to extract the RAR contents using WinRAR: It's free from www.rarlab.com/download.htm. Like unzipping a *.zip file, extract "*.rar" into VST Plug-ins Folder. (RAR Contains "*.dat" & "*.dll" files). Right click on *.rar, select 'extract Files' from the menu.


To uninstall simply remove the *.dat & *.dll files of your VST Plug-ins folder.



Version History

  • v1.0:  Initial version.



Plug-in Credits

Concept and Programming by Daniel Laiseca



Evaluation & Registration

The code for the licensed and evaluation versions of this software are identical. The Demo Version is full functional. You can do anything you can do with the full version, also some presets are included to demonstrate the instruments capabilities.

The demo restrictions are:

The demo generates a short beep noise in all output channels every 10 seconds and is limited to a certain number of trial executions:

The Registered Version does not have nagging sounds and their use is unlimited.

The program is a SHAREWARE. You are hereby licensed to use this software for evaluation purposes without charge but if you use this software after the evaluation period, a registration fee is required.
Note that by registering the software, you enable us to improve it and design new features.

The full version is available to purchase, as downloadable software, the price is US$35, and you can download the full version as soon as your payment is received (normally the same day)
