Astra Turbo Quasaris a
dual phase distortion synthesizerthat dynamically change the harmonic content of a carrier waveform by
influence of another modulator waveform.It can be used to
create spacey pads, synth keys, leads,
textures and ambient soundscapes.
Features a collection of 30 presets suitable for many genres
and styles of music and flexibility to custom design over a
diverse sonic palette. Available as plugin in VST and VST3 64 bit versions for Windows, as well
as in Audio Unit for
Phase Distortion Oscillators:
Offers 16 different single-cycle waveforms per channel.
Modulation Depth: Controls the
wave shape distortion for left and right channels. The values can be changed
by turning the slider or by entering a value from the keypad and pressing

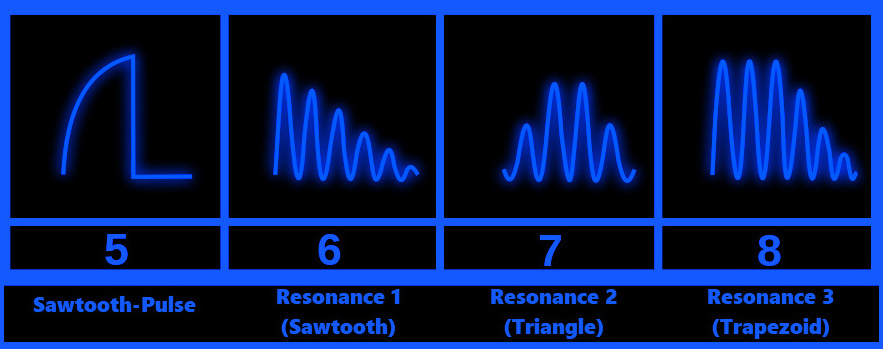

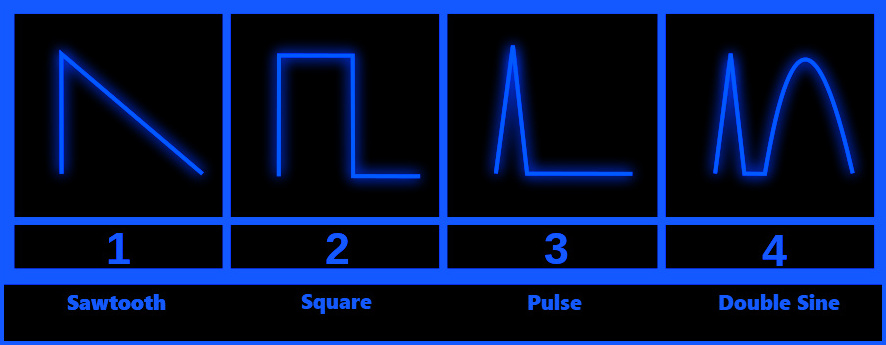

Waveshaper Section: These combo
boxes presents a double selectable wave
shapes with 5 basic waveforms: sawtooth, square, pulse, double sine and
sawtooth-pulse plus 3 resonant waveforms: resonance 1 (sawtooth), resonance 2
(triangle) and resonance 3 (trapezoid).
Provides independent controls
for the left and right channels.
ADSR Envelope Generator: A four stage envelope generator
with independent control over each stage:
Attack: determines the time it takes for the note to get
to the maximum level.
Decay: determines the time it takes for the note to go
from the maximum level to the sustain level (controlled by sustain).
Sustain: determines level the sound is played at while
the note is held (after the other envelope states, attack and decay, have
Release: determines the time it takes for the note to
fall from the sustain level to zero (silence) level when it is released.
Envelope Modulator: Controls how much the envelope
modulates the cut off frequency passing through the phase distortion
Filter Section: A smooth state variable filter with the
Filter Cutoff: Adjusts the frequency range to contour
the sound, add or regulate brightness.
Filter Resonance: Slightly emphasize or suppress
portions of the signal above or below the defined color/tone frequency.
Filter Mode: Switches the filter between lowpass, highpass, bandpass, or
band-rejection filter types, offering a simple and effective tone control to
shape and color the sound source.
Filter Strength: Makes subtle changes to the filter character:
Stage 1: Tone is slightly attenuated. Provides a warmness tone.
Stage 2: Tone is slightly amplified. Something brighter in character.
Low-Frequency Oscillator: These parameters apply LFO modulation. By
using the LFO to modulate various aspects of the audio signal, you can apply
effects such as vibrato or tremolo.
Bypass: Enable or disable the low frequency oscillator effect. Bypass
switch on, the LFO is bypassed. Bypass switched off, LFO is active.
Rate: Controls gradual changes to the pitch of notes or the filter cutoff
Depth: Controls the amplitude of the LFO. With a lower setting, the resulting
modulation is subtle, while a higher depth will result in a much more
a sense of spatial depth and width to sound, from small to huge sounding
: Adjusts the volume (amplitude
Dual Delay effect: Stores the input
signal and plays it back after a certain amount of time, creating from a
subtle echo to a pronounced blending of previous sounds with new sounds.
Improves the stereo image by adding a slight delay
to one of the channels.
Amount: Controls how much delay is applied to the
signal, which is to be delayed.
Time: Modulation to vary the
delay time dynamically, to control independently the left and right
Time can be changed by turning the knob or by entering a value from the
keypad and pressing enter key.
Feedback: Regeneration of
delay, to control independently the left and right channels. The values can
be changed by turning the knob or by entering a value from the keypad and
pressing enter key.
Mono mode switch: Possibility of turn the
synth into monophonic mode.
Glide: The rate at which
portamento slides the pitch between two notes, when playing in monophonic mode.
property: Tooltip when the mouse is over a control. You can mouse over any of the controls anywhere in
Astra Turbo Quasar and this will display a short description of what that control does.
Implementation of MIDI Continuous Controller parameters for use with
external hardware control via DAW.
Preset Manager: 'Browser' to
load and save presets and banks, enabling to export to *.fxp (VST2 Preset),
*.fxb (VST2 Bank), *.vstpreset (VST3 Preset), *.aupreset (Audio Unit Preset)
plus two generic formats (plain text): the *.xmlpreset (XML Preset) and the
*.xmlbank (XML Bank), providing cross-platform presets/banks. This allows to
control over the loading and saving of presets from disk as well as sharing
presets between different plugin formats using the generic *.xmlpreset (XML
Preset) and the *.xmlbank (XML Bank).
30 internal presets
Preset Sounds / Demo
Astral Plane Atmos
Barred Spiral Galaxy
Cosmological Big Bang
Dark Matter Meteoroid
Milky Way Path
Sirius Reso Bass
Stellar Gritty Dust
Before you install VST, VST3 or Audio
Units plugins, please make sure your computer fulfills the
extensively the demo version of this
product in your host to make sure there are no misbehaviors before
Operating System: Windows Windows 7, Windows 8, Windows 8.1 and Windows 10
(32-bit and 64-bit platforms).
VST or VST3 compatible host application 64 bit:
These VST/VST3 software can be "plugged in" to any host application that
supports VST or VST3 Technology like: Image-Line FL Studio, Steinberg
Cubase Pro, Artist and Elements,
Cakewalk by BandLab, Cockos REAPER, PreSonus Studio One, Acoustica Mixcraft,
MakeMusic Finale, Avid Sibelius, Magix ACID Music Studio, Magix Samplitude
Music Studio and Pro X, Cantabile, n-Track Studio, DarkWave Studio, Bitwig,
SAVIHost among others.
MIDI Controller Device: A MIDI
Controller is required to play this VST instrument. The most common type
of device in this class is the keyboard controller. After launching the
Digital Audio Workstation or MIDI host application be sure to select the
appropriate MIDI device before attempting to play your MIDI controller.
An ASIO® sound card is recommended for low latency real-time play.
Operating System: macOS Sierra, macOS High Sierra,
macOS Mojave, macOS Catalina, macOS Big Sur. We do not officially support older systems such as PowerPC
or deprecated versions of Mac OS X. However our plugins may work, but we
cannot guarantee any performance on such old systems.
Audio Unit compatible host
application. They can be "plugged in" to process audio by applications
such as Logic Pro, GarageBand, Ableton Live, REAPER, Studio One
Gig Performer, MainStage and Digital Performer among others.
MIDI Controller Device: A MIDI Controller is
required to play this VST instrument. The most common type of device in
this class is the keyboard controller. After launching the Digital Audio
Workstation or MIDI host application be sure to select the appropriate
MIDI device before attempting to play your MIDI controller.
the Unregistered/Demo Version:
sound quality than the full version. It generates a short beep in
all output channels every 10 seconds. Be aware that certain features
may not be available.
The full version is available to purchase, as downloadable software, the
