EQuanaut 10-Band Graphic Equalizer VST, VST3 and Audio Unit Plugins for Windows and Mac 64 bit
EQuanaut 10-Band Graphic Equalizer Effect VST VST3 Audio Unit 64 bit Plugin (Fx)

Menu

  Home

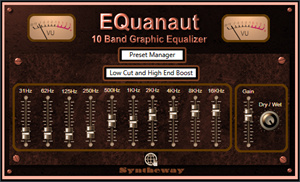

EQuanaut 10-Band Graphic Equalizer

VST VST3 Audio Unit Effect Plugin 64 bit


Please try the demo version before purchasing (Plugins non-refundable)

  Best Choir VST: Magnus Choir VST VST3 v2.5 for Windows, Magnus Choir Audio Unit, VST and VST3 v3.5 for Mac


EQuanaut is a VST VST3 and Audio Unit stereo graphic equalizer with a set of band-pass filters that divide the audio spectrum into 10 bands.EQuanaut is a VST VST3 and Audio Unit stereo graphic equalizer with a set of band-pass filters that divide the audio spectrum into 10 bands.

EQuanaut is a stereo graphic equalizer with a set of band-pass filters that divide the audio spectrum into 10 bands allowing to control the amount of boost or cut in narrower frequency ranges, which is controlled with sliders or faders.

Add warmth and shimmer by boosting or Cut certain frequencies in a simple and intuitive interface with 26 built-in presets as a starting point. EQuanaut is available as an effect plugin in VST and VST3 64 bit versions for Windows as well as in Audio Unit for macOS.




Features:

  • Center Frequencies: 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz and 16 kHz.

  • 10 Sliders or faders. The amplitude passed by each filter is adjusted using a slide control to boost or cut frequency components.

  • Gain. Adjusts the overall decibel level by increasing or decreasing the amplitude of the signal from the input to the output, strengthening or weakening the frequency bands or ranges selected.

  • GEQ Reset. The Flat preset resets all bands of the currently selected graphic equalizer to zero decibel.

  • Dry / Wet. Offers a blend control for mixing and mastering.

  • Preset Manager. Built-in browser to load and save presets and banks, enabling to export to *.fxp (VST2 Preset), *.fxb (VST2 Bank), *.vstpreset (VST3 Preset), *.aupreset (Audio Unit Preset) plus two generic formats (plain text): the *.xmlpreset (XML Preset) and the *.xmlbank (XML Bank), providing cross-platform presets/banks. This allows to control over the loading and saving of presets from disk as well as sharing presets between different plugin formats using the generic *.xmlpreset (XML Preset) and the *.xmlbank (XML Bank).

  • Preset Name Display: Text box to display the active preset name.

  • 26 Presets included. Ability to create new and interesting rotary speaker cabinet effects.

An overview of which frequencies affect different sound characteristics:

EQuanaut Frequency Distribution

Frequency Range Frequency Values
Sub-Bass Range ~ 31 Hz to 62 Hz
Bass Range ~ 62 Hz to 250 Hz
Low Midrange ~ 250 Hz to 500 Hz
Midrange ~ 500 Hz to 2 KHz
Upper Midrange ~ 2 KHz to 4 KHz
Presence Range ~ 4 Hz
Brilliance (High End) Range ~ 8 Hz to 16 KHz
  •



    Preset List:

    #

    Preset

    Boosted or Cut Frequencies

    1

    Absolute Highlight

    Boost 31 Hz 250 Hz / 2 KHz 16 KHz

    2

    Balanced Presence

    Boost 4 KHz → 16 KHz

    3

    Bass Booster

    Boost 31 Hz → 250 Hz

    4

    Bass Reducer

    Cut 31 Hz → 250 Hz

    5

    Drum Set Enhancement

    Staggered Cut 31 Hz → 250 Hz / Boost 2 KHz → 16 KHz

    6

    Extreme Midrange Cut

    Cut 500 Hz to 2 KHz

    7

    Flat → Reset GEQ to 0 dB Reset All Bands to Zero db

    8

    Full Bass Emphasis 31 Hz → 250 Hz

    9

    Full Bass and Treble

    Staggered Boost 31 Hz → 250 Hz / 2 KHz → 16 KHz

    10

    Full Treble Emphasis 2 KHz → 16 KHz

    11

    High End Brilliance Boost 2 KHz → 16 KHz

    12

    High End Cut

    Cut 2 KHz → 16 KHz

    13

    Low Boost and High End Cut Boost 31 Hz → 250 Hz / Cut 2 KHz → 16 KHz

    14

    Low Cut and High End Boost Cut 31 Hz → 250 Hz / Boost 2 KHz → 16 KHz

    15

    Midrange Booster

    Impulse 500 Hz 4 KHz

    16

    Midrange Cutter

    Lowered 500 Hz → 4 KHz

    17

    Smooth Boost

    Subtle Boost 31 Hz → 500 Hz / 4 KHz → 16 KHz

    18

    Smooth Cut

    Subtle Boost 31 Hz → 500 Hz / 1 KHz → 16 KHz

    19

    Treble Booster

    Staggered Boost 2 KHz → 16 KHz

    20

    Treble Reducer

    Staggered Cut 31 Hz → 250 Hz / 2 KHz → 16 KHz

    21

    Ultra Boost

    Boost 31 Hz → 250 Hz / 1 KHz / 4 KHz → 16 KHz

    22

    Ultra Cut

    Cut 31 Hz → 16 KHz

    23

    Upper Midrange Boost Emphasis 2 KHz → 4 KHz

    24

    Upper Midrange Cut Cut 2 KHz → 4 KHz

    25

    Vocal Enhancer

    Boost 31 Hz → 250 Hz / 2 KHz → 16 KHz

    26

    Vox Expander Highlighted 2 KHz → 16 KHz





    Equalization is the cutting or boosting of a particular frequency, or range of frequencies, in the frequency spectrum.

    Before you install VST, VST3 or Audio Units plugins, please make sure your computer fulfills the following requirements. Please test extensively the demo version of this product in your host to make sure there are no misbehaviors before purchasing.

     .dll (v2.4) and .vst3 (v3.6.7)

    • Operating System: Windows Windows 7, Windows 8, Windows 8.1, Windows 10 and Windows 11 (64-bit platforms).

    • VST or VST3 compatible host application 32/64 bit: These VST/VST3 software can be "plugged in" to any host application that supports VST or VST3 Technology like: Image-Line FL Studio, Steinberg Cubase Pro, Artist and Elements, Steinberg Nuendo, Cakewalk by BandLab, Cockos REAPER, PreSonus Studio One, Acoustica Mixcraft, Ableton Live, MakeMusic Finale, Avid Sibelius, Magix ACID Music Studio, Magix Samplitude Music Studio and Pro X, Cantabile, n-Track Studio, DarkWave Studio, Bitwig, Gig Performer, VSTHost,  SAVIHost among others.

    • An ASIO® sound card is recommended for low latency real-time play.

    • Operating System: macOS Sierra, macOS High Sierra, macOS Mojave, macOS Catalina, macOS Big Sur, macOS Monterey, macOS Ventura, macOS Sonoma.

    • Intel CPU processors only. Apple Silicon M1, M2 or M3 chip support under Rosetta 2 mode only. In all cases, always we encourage you to test the free demo version of the software.

    • Audio Unit compatible host application. They can be "plugged in" to process audio by applications such as Logic Pro, GarageBand, Ableton Live, REAPER, Studio One Professional, Ardour, Gig Performer, MainStage and Digital Performer among others.




    Limitations of the Unregistered/Demo Version:

    Same sound effects quality than the full version. It generates a short beep in all output channels every 10 seconds. Be aware that certain features may not be available.

    The full version is available to purchase, as downloadable software, the price is US$ 19,90


    Make payments with PayPal - it's fast, free and secure!




    Equalization is the cutting or boosting of a particular frequency, or range of frequencies, in the frequency spectrum. EQuanaut divides that spectrum into sections called ‘bands’, to cut or boost parts of the sound.
