Synth Leads | Pads | Keys | Basses | Atmos Textures | Ambient Soundscapes | Sound Effects


Overview

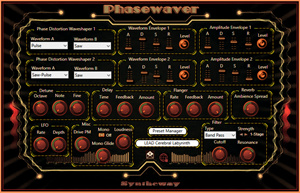

Phasewaver is a phase distortion synthesizer with a vast array of composite waveshaping and amplitude modulation to generate a complex frequency spectrum. Essentially, the harmonic content of a carrier waveform dynamically change by influence of another modulator waveform, which can be used to create synth pads, keys, leads, basses, atmospheric textures, ambient soundscapes and sound effects.

Features a collection of 40 presets suitable for many genres and styles of music and flexibility to custom design over a wide sonic spectrum. Available as plugin in VST and VST3 64 bit versions for Windows, as well as in Audio Unit for macOS.



Features

  • Two phase distortion oscillators. Offers 16 different single-cycle waveforms per channel.

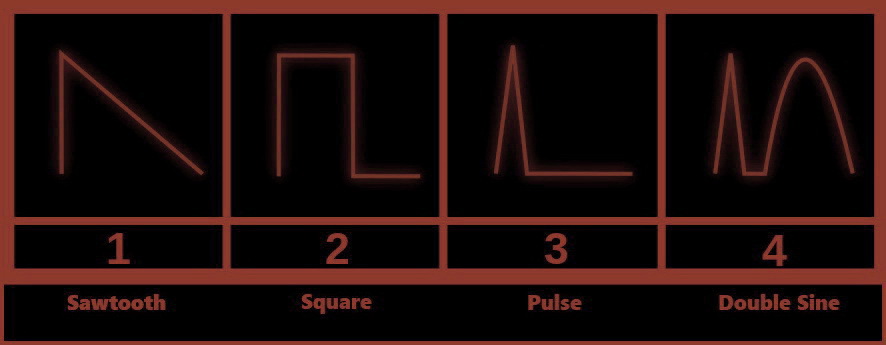

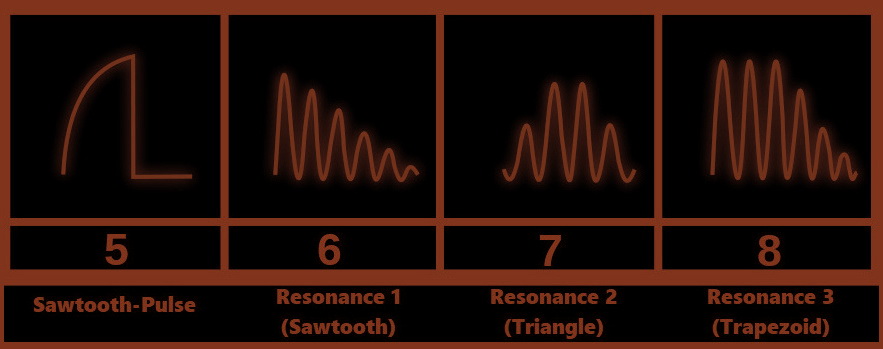

    • Two waveshapers. These combo boxes presents a double selectable wave shapes for each oscillator with 5 basic waveforms: sawtooth, square, pulse, double sine and sawtooth-pulse plus 3 resonant waveforms: resonance 1 (sawtooth), resonance 2 (triangle) and resonance 3 (trapezoid).

    Phasewaver features two Waveshaper sections. These combo boxes presents a double selectable wave shapes with 5 basic waveforms: sawtooth, square, pulse, double sine and sawtooth-pulse plus 3 resonant waveforms: resonance 1 (sawtooth), resonance 2 (triangle) and resonance 3 (trapezoid).

    Phasewaver features a Waveshaper section. These combo boxes presents a double selectable wave shapes with 5 basic waveforms: sawtooth, square, pulse, double sine and sawtooth-pulse plus 3 resonant waveforms: resonance 1 (sawtooth), resonance 2 (triangle) and resonance 3 (trapezoid).

  • Waveform Envelope Generator and Amplitude Envelope Modulator for both phase distortion oscillators to control the audio signal passing through them, with independent control over each stage:

    • Attack: determines the time it takes for the note to get to the maximum level.

    • Decay: determines the time it takes for the note to go from the maximum level to the sustain level (controlled by sustain).

    • Sustain: determines the level of the sound is played at while the note is held (after the other envelope states, attack and decay, have been completed).

    • Release: determines the time it takes for the note to fall from the sustain level to zero (silence) level when it is released.

  • Detune. The following parameters controls function as coarse and fine tuners by providing overall transposition and tuning of the oscillators (common for all oscillators and waveforms):

    • Octave. Selector to specify octaves above or below the current octave.

    • Note. Selector to switch between 0 to 11 semitones.

    • Fine. A fine-tuning.

  • Filter Section. A smooth state variable filter with the following parameters:

    • Filter Cutoff. Adjusts the frequency range to contour the sound, add or regulate brightness.

    • Filter Resonance. Slightly emphasize or suppress portions of the signal above or below the defined color/tone frequency.

    • Filter Mode. Switches the filter between low-pass, high-pass, band-pass, or band-rejection filter types, offering a simple and effective tone control to shape and color the sound source.

    • Filter Strength. Makes subtle changes to the filter character:

      • Stage 1: Tone is slightly attenuated. Provides a warmness tone.

      • Stage 2: Tone is slightly amplified. Something brighter in character.

  • Low-Frequency Oscillator. These parameters apply LFO modulation. By using the LFO to modulate various aspects of the audio signal, you can apply effects such as vibrato or tremolo.

    • LFO Rate: Controls gradual changes to the pitch of notes or the filter cutoff frequency.

    • LFO Depth: Controls the amplitude of the LFO. With a lower setting, the resulting modulation is subtle, while a higher depth will result in a much more extreme effect.

  • Reverb effect. A stereophonic ambience spread that brings a sense of spatial depth and width to sound, from small to huge sounding spaces. Turn it clockwise to increase it or counterclockwise to decrease it.

  • Delay effect. Stores the input signal and plays it back after a certain amount of time, creating from a subtle echo to a pronounced blending of previous sounds with new sounds. Improves the stereo image by adding a slight delay to one of the channels. Parameters includes:

    • Time. Modulation to vary the delay time dynamically.

    • Feedback. Regeneration of delay to intensify or extend the effect.

    • Amount. Determines the total amount of delayed signal. Turn it clockwise to increase it or counterclockwise to decrease it.

  • Flanger effect. Creates a mixing of two identical signals together, one signal delayed by a small and gradually changing period, causing a ‘phase shift´ between the two signals. The length of this pause is gradually varied over time resulting in a ‘sweeping´ stereo effect, delivering from subtle nuances to extreme jet engine taking off.

    • Rate. Defines the frequency or speed of the oscillator. Turn the knob clockwise to increase the rate or counterclockwise to decrease the rate.

    • Feedback (Resonance, Regen). Determines the amount of the effect signal that is routed back into the input. This can change the tonal color and/or make the sweeping effect more pronounced. Higher settings yield a more dramatic effect. Turn the knob clockwise to increase the rate or counterclockwise to decrease the regeneration.

    • Amount. Determines the total amount of flanged signal. Turn it clockwise to increase it or counterclockwise to decrease it.

  • Drive PM. Provides a phase distortion extra modulation depth.

  • Turn it clockwise to increase it or counterclockwise to decrease it.
  • Mono. Monophonic mode switch to turn the synth into monophonic mode.

  • Mono Glide. The rate at which portamento slides the pitch between two notes, when playing in monophonic mode.

  • Loudness: Adjusts the volume (amplitude control). Turn it clockwise to increase it or counterclockwise to decrease it.

  • Hint property. Tooltip when the mouse is over a control. You can mouse over any of the controls anywhere in Phasewaver and this will display a short description of what that control does.

  • MIDI automation. Implementation of MIDI Continuous Controller parameters for use with external hardware control via DAW.

  • Preset Manager: 'Browser' to load and save presets and banks, enabling to export to *.fxp (VST2 Preset), *.fxb (VST2 Bank), *.vstpreset (VST3 Preset), *.aupreset (Audio Unit Preset) plus two generic formats (plain text): the *.xmlpreset (XML Preset) and the *.xmlbank (XML Bank), providing cross-platform presets/banks. This allows to control over the loading and saving of presets from disk as well as sharing presets between different plugin formats using the generic *.xmlpreset (XML Preset) and the *.xmlbank (XML Bank).

  • 40 internal presets (Pre-programmed sounds):

#



List of 40 Preset Sounds / Demo

1

LEAD Cerebral Labyrinth

2

LEAD Double Sine Force

3

LEAD Fuzzy Darkness

4

LEAD Pulse Power

5

LEAD Resilient Mind

6

LEAD Shivering Impulse

7

LEAD Spatial Depth

8

LEAD Trembling Ripples

9

PAD Ambience Texture

10

PAD Anagram

11

PAD Eden Connection

12

PAD Equidistant Paths

13

PAD Melancholic Scenery

14

PAD Rhythmic Entrance

15

PAD Somber Cadence

16

PAD Soothing Landscape

17

BASS Electric Synth

18

BASS Gritty Blur

19

BASS Resonance

20

BASS Wah Wah

21

KEY Combo Organ

22

KEY Electric Harpsichord

23

KEY Electric Piano

24

KEY Funky Clavi

25

KEY Magical Sunset

26

KEY Oriental Lute

27

KEY Pulse Organ Hue

28

KEY Sawtooth Brass

29

KEY Warbling Vox

30

ATMO Chaotic Impulse

31

ATMO Enchanted Place

32

ATMO Gloomy Ambient

33

ATMO Heavenly Chimes

34

ATMO Hidden Apocalypse

35

ATMO Tormented Ghost

36

ATMO Warning Zone

37

SFX Buzz Machine

38

SFX Glider Takeoff

39

SFX Harrowing Alarm

40

SFX Permuted Frequencies





Before you install VST, VST3 or Audio Units plugins, please make sure your computer fulfills the following requirements. Please test extensively the demo version of this product in your host to make sure there are no misbehaviors before purchasing.

 .dll (v2.4) and .vst3 (v3.6.7)

  • Operating System: Windows Windows 7, Windows 8, Windows 8.1, Windows 10 and Windows 11 (32-bit and 64-bit platforms).

  • VST or VST3 compatible host application 64 bit: These VST/VST3 software can be "plugged in" to any host application that supports VST or VST3 Technology like: Image-Line FL Studio, Steinberg Cubase Pro, Artist and Elements, Steinberg Nuendo, Cakewalk by BandLab, Cockos REAPER, PreSonus Studio One, Acoustica Mixcraft, Ableton Live, MakeMusic Finale, Avid Sibelius, Magix ACID Music Studio, Magix Samplitude Music Studio and Pro X, Cantabile, n-Track Studio, DarkWave Studio, Bitwig, Gig Performer, VSTHost,  SAVIHost among others.

  • MIDI Controller Device: A MIDI Controller is required to play this VST instrument. The most common type of device in this class is the keyboard controller. After launching the Digital Audio Workstation or MIDI host application be sure to select the appropriate MIDI device before attempting to play your MIDI controller.

  • An ASIO® sound card is recommended for low latency real-time play.

  • Operating System: macOS Sierra, macOS High Sierra, macOS Mojave, macOS Catalina, macOS Big Sur, macOS Monterey. We do not officially support older systems such as PowerPC or deprecated versions of Mac OS X. However our plugins may work, but we cannot guarantee any performance on such old systems.

  • Audio Unit compatible host application. They can be "plugged in" to process audio by applications such as Logic Pro, GarageBand, Ableton Live, REAPER, Studio One Professional, Ardour, Gig Performer, MainStage and Digital Performer among others.

  • MIDI Controller Device: A MIDI Controller is required to play this VST instrument. The most common type of device in this class is the keyboard controller. After launching the Digital Audio Workstation or MIDI host application be sure to select the appropriate MIDI device before attempting to play your MIDI controller.




Limitations of the Unregistered/Demo Version:

Same sound quality than the full version. It generates a short beep in all output channels every 10 seconds. Be aware that certain features may not be available.

The full version is available to purchase, as downloadable software, the price is US$ 43,90
