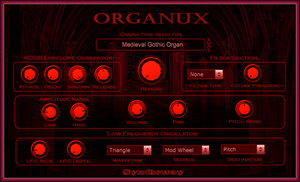

Organux VST VST3 Audio Unit

Antique, Classic, Vintage and Modern Virtual Organs

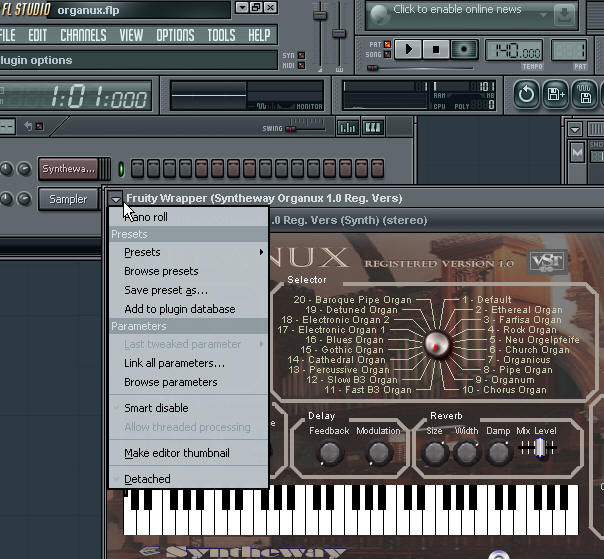

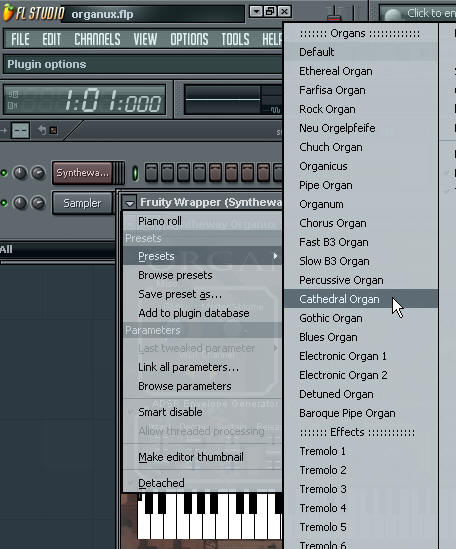

• Quick selector to switch between 30 different preset sounds:

# List of Preset Sounds / Demo ↓ 1 Cathedral Organ 2 Chapel's Baroque Organ 3 Church Organ 4 Medieval Gothic Organ 5 Renaissance Pipe Organ 6 Dark Dissonant Pipe Organ 7 Portable Harmonium 8 Pump Reed Organ 9 Blues Organ 10 Chorus Organ 11 Mellow Rock Organ 12 Percussive Organ 13 Circus Steam Calliope 14 Ethereal Organ 15 Glassy Ambient Organ 16 New Age Organ 17 Organicus 18 Organum 19 Synthesizer Organ 20 Vibraphorgan (Organ Vibes) 21 Hammond B3 (Fast Leslie Speed) 22 Hammond B3 (Slow Leslie Speed) 23 Korg O1-WProX Fantasy Organ 24 Oberheim OB-3 Organ 25 Yamaha CN-70 Organ 26 Elka Panther (Transistor Combo) 27 Farfisa Compact Organ 28 VOX Continental (Transistor Combo) 29 VOX Corinthian (Transistor Combo) 30 VOX Jaguar (Transistor Combo)

• Low-Frequency Oscillator Controls: These knobs apply LFO modulation to the selected instrument. By using the LFO to modulate various aspects of the audio signal, you can apply effects such as vibrato or tremolo.

Ø Rate: This knob controls the frequency. Turn clockwise for a faster modulation rate.
Ø Depth: This knob controls the amplitude. With a lower setting, the resulting modulation is subtle, while a higher depth will result in a much more extreme effect.

The following combo boxes settings adds motion or variability to sounds:

Ø WaveForm: Switches between ‘Triangle’, ‘Sine’, ‘Saw’, ‘Square’ and ‘Exponential’ waveforms.
Ø Source: Switches between ‘Modulation Wheel’, ‘Aftertouch’ and ‘Velocity’.
Ø Destination: Switches between ‘Pitch’, ‘Expression’ and ‘Pan’ modulation.

• ADSR envelope generator with Attack, Sustain, Decay and Release parameters:

Ø Attack determines the time it takes for the note to get to the maximum level.
Ø Decay determines the time it takes for the note to go from the maximum level to the sustain level (controlled by Sustain).
Ø Sustain determines the level of the sound is played at while the note is held (after the other envelope states, Attack and Decay, have been completed).
Ø Release determines the time it takes for the note to fall from the sustain level to zero (silence) level when it is released.

• Pitch Bend: The Pitch Bend knob directly changes the pitch of the selected instrument.

Ø Pitch Bend center position: is normal pitch.
Ø Pitch Bend down: Specifies the amount of pitch change that will occur when the pitch bend/modulation lever is moved to the left.
Ø Pitch Bend up: Specifies the amount of pitch change that will occur when the pitch bend/modulation lever is moved the right.

• Reverb built-in: provides a spaciousness and depth to simulate the sound reflections from walls, floors and ceilings following a sound created in an acoustically reflective environment. Small rooms can be modeled as well as large spaces.

• Filter Type. Combo box to switch between the following options:

Ø Low Pass (LPF): a filter that passes signals with a frequency lower than a certain cutoff frequency and attenuates signals with frequencies higher than the cutoff frequency.
Ø High Pass (HPF): a filter that passes signals with a frequency higher than a certain cutoff frequency and attenuates signals with frequencies lower than the cutoff frequency.
Ø None: No filter is applied.
Ø Cutoff Frequency Filter: Sets the cutoff frequency for the low pass and high pass filters.

• Amplitude Range Parameters: It controls the loudness, the way in which we perceive amplitude.The sensitivity level is set by the user:

Ø Amplitude range (low) - sets amplitude range, lower bound (dB)
Ø Amplitude range (high) - sets amplitude range, upper bound (dB)

• Volume: Adjusts the volume of the instrument.

• Panning potentiometer control: Set the panning of the instrument. Adjusts the stereo pan position of the signal output, which determines how much of signal is sent to the left and right channels.

• MIDI CC Automation: Implementation of MIDI Continuous Controller parameters for use with external hardware control via DAW, such as: LFO depth (CC#1), expression (CC#11), volume (CC#7), pan (CC#10), balance (CC#8), filter cutoff (CC#74), ADSR (Attack: CC#73, Decay: CC#75, Sustain: CC#76, Release: CC#72) and reverb depth (CC#91).
